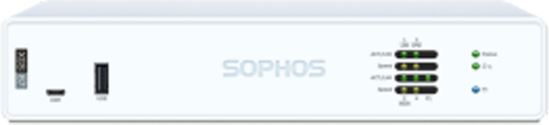

Sophos XGS 87w hardware firewall 3.7 Gbit/s

Sophos XGS 87w. Firewall throughput: 3.7 Gbit/s, Firewall (IMIX) throughput: 2.5 Gbit/s, IPSec VPN throughput: 0.75 Gbit/s. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Connectivity technology: Wired & Wireless. Total storage capacity: 16 GB. AC input voltage: 100-240 V, Input current: 5 A, DC input voltage: 12 V

Manufacturers: Sophos , Sophos, INC.

SKU: 6218220

Manufacturer part number: IY8B1CSUS

SMB and Branch Office: Desktop Models
Customers looking for an all-in-one network security solution will appreciate the seamless connectivity options available for our desktop appliances. With the modularity that smaller businesses, retail outlets, and branch offices need to grow and adapt to changing circumstances, they offer the perfect balance between price and performance. All desktop models are optionally available with built-in Wi-Fi.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.

Dual processor architecture for an excellent price to performance ratio
Every model is available with optional integrated Wi-Fi for all-in-one connectivity
An expansion bay on all XGS 116/126/136 models improves compatibility for 3G/4G when used with our optional module
An optional second Wi-Fi radio module can be added to w-models with an expansion bay
Power-over-Ethernet ports built in on all XGS 116, 126 and 136 models (2.5GE on 136)
A second power supply option for all XGS 1xx models offers a redundancy option not always seen in this form factor
The SFP port on all models can be used for FTTH/ FTTP or with the optional VDSL modem

Overview
Specifications
Contact Us

Dual processor architecture for an excellent price to performance ratio
Every model is available with optional integrated Wi-Fi for all-in-one connectivity
An expansion bay on all XGS 116/126/136 models improves compatibility for 3G/4G when used with our optional module
An optional second Wi-Fi radio module can be added to w-models with an expansion bay
Power-over-Ethernet ports built in on all XGS 116, 126 and 136 models (2.5GE on 136)
A second power supply option for all XGS 1xx models offers a redundancy option not always seen in this form factor
The SFP port on all models can be used for FTTH/ FTTP or with the optional VDSL modem

Products specifications

Attribute name	Attribute value
Width	9.06"
Depth	8.09"
Height	1.73"
Weight	3 lbs
Maximum firewall connections per second	35700
SFP module slots quantity	1
Antennas quantity	2
MIMO	Yes
Micro-USB ports quantity	1
Firewall latency	6 µs
Firewall (IMIX) throughput	2.5 Gbit/s
IPSec VPN throughput	0.75 Gbit/s
Threat protection throughput	240 Mbit/s
Xstream SSL decryption + Threat protection	375 Mbit/s
Features
Input current	5 A
Design
Certification	CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, NOM
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Ports & interfaces
Connectivity technology	Wired & Wireless
USB 2.0 ports quantity	1
Gigabit Ethernet (copper) ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Performance
Concurrent connections	1600000
Network
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Power
AC input voltage	100-240 V
Power consumption (idle)	27.1 W
Power supply	60 W
Power consumption (max)	46.8 W
DC input voltage	12 V
Packaging data
Package weight	6.06 lbs
Storage
Total storage capacity	16 GB
Data transmission
Firewall throughput	3700 Mbit/s
IPS/IDS throughput	1015 Mbit/s
