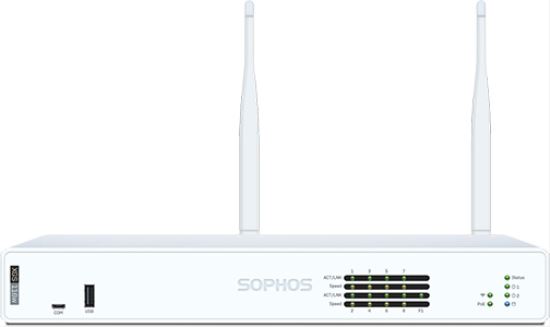

Sophos XGS 116w hardware firewall 7.7 Gbit/s

Sophos XGS 116w. Firewall throughput: 7.7 Gbit/s, Firewall (IMIX) throughput: 4.5 Gbit/s, IPSec VPN throughput: 4.8 Gbit/s. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Connectivity technology: Wired & Wireless. Storage media type: SSD, Total storage capacity: 64 GB. AC input voltage: 100-240 V, DC input voltage: 12 V, Power consumption (max): 60 W
Manufacturers: Sophos, INC. , Sophos
SKU: 6218208
Manufacturer part number: IY1B1CSUS
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
SMB and Branch Office: Desktop Models
Customers looking for an all-in-one network security solution will appreciate the seamless connectivity options available for our desktop appliances. With the modularity that smaller businesses, retail outlets, and branch offices need to grow and adapt to changing circumstances, they offer the perfect balance between price and performance. All desktop models are optionally available with built-in Wi-Fi.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.



  • Dual processor architecture for an excellent price to performance ratio
  • Every model is available with optional integrated Wi-Fi for all-in-one connectivity
  • An expansion bay on all XGS 116/126/136 models improves compatibility for 3G/4G when used with our optional module
  • An optional second Wi-Fi radio module can be added to w-models with an expansion bay
  • Power-over-Ethernet ports built in on all XGS 116, 126 and 136 models (2.5GE on 136)
  • A second power supply option for all XGS 1xx models offers a redundancy option not always seen in this form factor
  • The SFP port on all models can be used for FTTH/ FTTP or with the optional VDSL modem
SMB and Branch Office: Desktop Models
Customers looking for an all-in-one network security solution will appreciate the seamless connectivity options available for our desktop appliances. With the modularity that smaller businesses, retail outlets, and branch offices need to grow and adapt to changing circumstances, they offer the perfect balance between price and performance. All desktop models are optionally available with built-in Wi-Fi.

All models are powered by a high-speed CPU plus a dedicated Xstream Flow Processor for hardware acceleration.



  • Dual processor architecture for an excellent price to performance ratio
  • Every model is available with optional integrated Wi-Fi for all-in-one connectivity
  • An expansion bay on all XGS 116/126/136 models improves compatibility for 3G/4G when used with our optional module
  • An optional second Wi-Fi radio module can be added to w-models with an expansion bay
  • Power-over-Ethernet ports built in on all XGS 116, 126 and 136 models (2.5GE on 136)
  • A second power supply option for all XGS 1xx models offers a redundancy option not always seen in this form factor
  • The SFP port on all models can be used for FTTH/ FTTP or with the optional VDSL modem
Products specifications
Attribute nameAttribute value
Width12.6"
Depth8.39"
Height1.73"
Weight4.85 lbs
Maximum firewall connections per second61500
SFP module slots quantity1
Storage media typeSSD
MIMOYes
Micro-USB ports quantity1
Firewall latency8 µs
Firewall (IMIX) throughput4.5 Gbit/s
IPSec VPN throughput4.8 Gbit/s
Threat protection throughput720 Mbit/s
Xstream SSL decryption + Threat protection650 Mbit/s
Design
CertificationCB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, NOM, Anatel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Ports & interfaces
Connectivity technologyWired & Wireless
USB 2.0 ports quantity1
Gigabit Ethernet (copper) ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Performance
Concurrent connections1600000
Network
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Power
AC input voltage100-240 V
Power consumption (idle)30 W
Power supply150 W
Power consumption (max)60 W
DC input voltage12 V
Packaging data
Package weight9.26 lbs
Storage
Total storage capacity64 GB
Data transmission
Firewall throughput7700 Mbit/s
IPS/IDS throughput2500 Mbit/s
*
*
*
