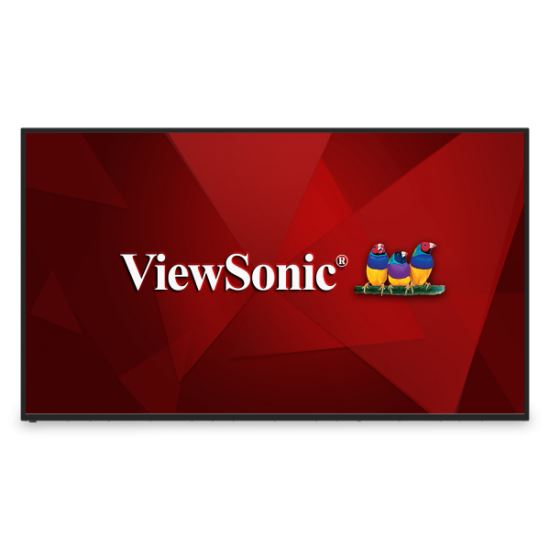

Viewsonic 55-INCH 4K UHD Digital signage flat panel 55" LED Wi-Fi 290 cd/m² 4K Ultra HD Black Built-in processor 16/7

Viewsonic 55-INCH 4K UHD. Product design: Digital signage flat panel. Display diagonal: 55", Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 290 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Product color: Black
Manufacturer: Viewsonic
SKU: 7278165
Manufacturer part number: CDE5512-E1
GTIN: 766907017649
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The ViewSonic® CDE5512-E1 is a 55” 4K Ultra HD large format wireless presentation display bundle. With features including a razor-sharp resolution of 3840 x 2160, 290-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE5512 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® Cast screen sharing software* (along with the optional ViewSonic vCastSender app), and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with a 1.5GHz Quad-core embedded SoC processor, 2GB RAM, and 16GB of internal memory, the CDE5512 can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE5512 is also suitable for a wide array of diverse signage applications. Bundle includes CDE5512 and wall mount.

ALL-IN-ONE SOLUTION
Perfect for conference rooms, huddle spaces and other collaborative environments, this bundle delivers the most useful items businesses need to get up and running with their wireless presentation display. You can quickly install the display with the included wall mount, while a pre-installed Wi-Fi module provides a robust and reliable wireless presentation experience.

Powerful Embedded SoC Platform
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

Embedded LAN and USB Wireless Connectivity
An integrated LAN (RJ45) connection, as well as a pre-installed USB Wi-Fi removable module, provide easy network connection options for content streaming.

Free ViewBoard® Cast Content Sharing Software
ViewBoard® Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.

Remote Content Sharing from Anywhere
myViewBoard Display is a cloud-based and client-free app that allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.

myViewBoard Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the school network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of a school’s devices from a centralized dashboard.

AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.

Reliable 16/7 Continuous Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.

3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.



  • All-in-one solution includes CDE5512 display and wall mount
  • Powerful ViewSonic Embedded Signage Platform (VESP)
  • Integrated RJ45 and USB Wi-Fi
  • ViewBoard Cast content sharing software
  • myViewBoard Display app for remote screen sharing
The ViewSonic® CDE5512-E1 is a 55” 4K Ultra HD large format wireless presentation display bundle. With features including a razor-sharp resolution of 3840 x 2160, 290-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the CDE5512 transforms meeting rooms into a dynamic communications hub. The built-in ViewBoard® Cast screen sharing software* (along with the optional ViewSonic vCastSender app), and myViewBoard Display software, enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with a 1.5GHz Quad-core embedded SoC processor, 2GB RAM, and 16GB of internal memory, the CDE5512 can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. And with remote configuration and content management system support, the ViewSonic® CDE5512 is also suitable for a wide array of diverse signage applications. Bundle includes CDE5512 and wall mount.

ALL-IN-ONE SOLUTION
Perfect for conference rooms, huddle spaces and other collaborative environments, this bundle delivers the most useful items businesses need to get up and running with their wireless presentation display. You can quickly install the display with the included wall mount, while a pre-installed Wi-Fi module provides a robust and reliable wireless presentation experience.

Powerful Embedded SoC Platform
The ViewSonic® EMBEDDED Signage Platform (VESP) is a Linux-based Kernel OS, all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

Embedded LAN and USB Wireless Connectivity
An integrated LAN (RJ45) connection, as well as a pre-installed USB Wi-Fi removable module, provide easy network connection options for content streaming.

Free ViewBoard® Cast Content Sharing Software
ViewBoard® Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content (such as documents, cloud files, multimedia, etc.) on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.

Remote Content Sharing from Anywhere
myViewBoard Display is a cloud-based and client-free app that allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.

myViewBoard Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the school network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of a school’s devices from a centralized dashboard.

AV Control System Certified
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified and Crestron compatible.

Reliable 16/7 Continuous Operation
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

Integrated Content Management System
Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.

3-year Limited Warranty
Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.



  • All-in-one solution includes CDE5512 display and wall mount
  • Powerful ViewSonic Embedded Signage Platform (VESP)
  • Integrated RJ45 and USB Wi-Fi
  • ViewBoard Cast content sharing software
  • myViewBoard Display app for remote screen sharing
Products specifications
Attribute nameAttribute value
Width49"
Depth3.14"
Height28.4"
Weight28.4 lbs
Batteries IncludedYes
Response Time8 ms
TouchscreenNo
Panel mounting interface200 x 200 mm
VGA (D-Sub) input ports1
Product designDigital signage flat panel
RMS rated power10 W
Placement supportedIndoor
Built-in processorYes
VESA mountingYes
DVI portNo
Handheld remote controlYes
HD type4K Ultra HD
Native aspect ratio16:9
Display brightness290 cd/m²
Display number of colors1.07 billion colors
Internal storage capacity16 GB
Number of built-in speakers2
Power consumption (standby)0.5 W
HDMI version2.0
Display technologyLED
Contrast ratio (typical)1200:1
DisplayPorts quantity0
Viewing angle, horizontal178 °
Viewing angle, vertical178 °
Computer system typeSystem on Chip (SoC)
HDMI input ports quantity2
Contrast ratio (dynamic)5000:1
Operating hours (hours/days)16/7
LED backlighting typeDirect-LED
Surface hardness3H
Anti-glare screenYes
Haze rate2 %
Compliance certificatesRoHS
Features
Internal memory2 GB
PurposeCommercial
Built-in speaker(s)Yes
Packaging content
Cables includedAC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80 %
Ports & interfaces
Ethernet LAN (RJ-45) ports1
HDMI ports quantity2
USB ports quantity2
USB version2.0
RS-232 interfaceYes
USB portYes
Performance
Ethernet LANYes
Processor frequency1.5 GHz
Network
Wi-FiYes
Technical details
Product colorBlack
Sustainability certificatesENERGY STAR
Power
Power consumption (typical)100 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Packaging data
Package width52.3"
Package depth7.09"
Package height30.9"
Package weight40.6 lbs
Processor
Processor familyARM Cortex
Processor manufacturerARM
Processor modelA53
Processor cores4
Ergonomics
Display diagonal (metric)55"
Display resolution3840 x 2160 pixels
Display
Display diagonal55"
Computer system
Computer systemYes
*
*
*
Products specifications
Attribute nameAttribute value
Width49"
Depth3.14"
Height28.4"
Weight28.4 lbs
Batteries IncludedYes
Response Time8 ms
TouchscreenNo
Panel mounting interface200 x 200 mm
VGA (D-Sub) input ports1
Product designDigital signage flat panel
RMS rated power10 W
Placement supportedIndoor
Built-in processorYes
VESA mountingYes
DVI portNo
Handheld remote controlYes
HD type4K Ultra HD
Native aspect ratio16:9
Display brightness290 cd/m²
Display number of colors1.07 billion colors
Internal storage capacity16 GB
Number of built-in speakers2
Power consumption (standby)0.5 W
HDMI version2.0
Display technologyLED
Contrast ratio (typical)1200:1
DisplayPorts quantity0
Viewing angle, horizontal178 °
Viewing angle, vertical178 °
Computer system typeSystem on Chip (SoC)
HDMI input ports quantity2
Contrast ratio (dynamic)5000:1
Operating hours (hours/days)16/7
LED backlighting typeDirect-LED
Surface hardness3H
Anti-glare screenYes
Haze rate2 %
Compliance certificatesRoHS
Features
Internal memory2 GB
PurposeCommercial
Built-in speaker(s)Yes
Packaging content
Cables includedAC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 80 %
Ports & interfaces
Ethernet LAN (RJ-45) ports1
HDMI ports quantity2
USB ports quantity2
USB version2.0
RS-232 interfaceYes
USB portYes
Performance
Ethernet LANYes
Processor frequency1.5 GHz
Network
Wi-FiYes
Technical details
Product colorBlack
Sustainability certificatesENERGY STAR
Power
Power consumption (typical)100 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Packaging data
Package width52.3"
Package depth7.09"
Package height30.9"
Package weight40.6 lbs
Processor
Processor familyARM Cortex
Processor manufacturerARM
Processor modelA53
Processor cores4
Ergonomics
Display diagonal (metric)55"
Display resolution3840 x 2160 pixels
Display
Display diagonal55"
Computer system
Computer systemYes
