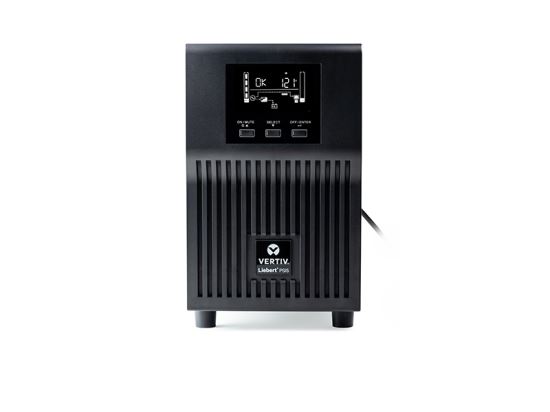

Vertiv PSI5-750MT120 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 675 W 6 AC outlet(s)1

Vertiv PSI5-750MT120 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 675 W 6 AC outlet(s)

Vertiv PSI5-750MT120. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 675 W. AC outlet types: NEMA 5-15R, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Mini Tower, Product color: Black, Cable length: 70.9" (1.8 m). Certification: FCC Part 15, Class B UL 497 B

Manufacturer: Vertiv

SKU: 5707115

Manufacturer part number: PSI5-750MT120

GTIN: 767041028041

The Vertiv™ Liebert® PSI5 line interactive mini tower uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. It offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. It ensures availability of critical IT applications such as network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. Add an optional communication card and remotely monitor up to 50 UPS systems through the free Vertiv™ Trellis™ Power Insight Application. It has a 2-year Vertiv warranty with optional extensions for up to 5 years total coverage. Not for sale in Vermont, Colorado, Washington.

Advanced, pure sine wave output power on battery
0.9 power factor, which means more usable power for connected devices
Voltage regulation from 83 to 159 VAC without using the battery
Less than 6 milliseconds transfer time to battery
Plug-and-play solution requires no installation and no rack space
RJ-45 for data line surge protection
Options for communication card for remote monitoring of devices

Overview
Specifications
Contact Us

Advanced, pure sine wave output power on battery
0.9 power factor, which means more usable power for connected devices
Voltage regulation from 83 to 159 VAC without using the battery
Less than 6 milliseconds transfer time to battery
Plug-and-play solution requires no installation and no rack space
RJ-45 for data line surge protection
Options for communication card for remote monitoring of devices

Products specifications

Attribute name	Attribute value
Width	5.71"
Depth	14.8"
Height	8.66"
Weight	54.5 lbs
Battery Capacity	9 Ah
Automatic Voltage Regulation (AVR)	Yes
Input Frequency	55/65 Hz
Cable Length	70.9"
Display Type	LCD
Control type	Buttons
Power factor	0.9
UPS topology	Line-Interactive
ECO mode	Yes
Output frequency	60 Hz
Features
Safety	UL 1778, c-UL-us Listed
Output power	675 W
Noise level	55 dB
Input operation voltage (min)	75 V
Input operation voltage (max)	146 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Efficiency	97 %
Waveform	Pure sine
Surge protection	Yes
Design
Certification	FCC Part 15, Class B UL 497 B
Form factor	Mini Tower
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	20 - 90 %
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15R
Technical details
Product color	Black
Power
Maximum current	10 A
Output power capacity	0.75 kVA
Power protection features	Over current, Short circuit
Packaging data
Package width	9.06"
Package depth	17.7"
Package height	12.8"
Package weight	61.3 lbs
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	12 V
Number of battery cells	2
