Cisco Small Business SG220-26 Managed L2 Gigabit Ethernet (10/100/1000) Black1

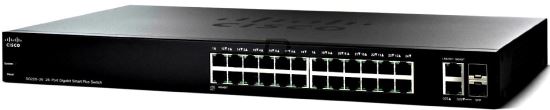

Cisco Small Business SG220-26 Managed L2 Gigabit Ethernet (10/100/1000) Black

Cisco Small Business SG220-26. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8192 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE...
Manufacturers: Cisco , CISCO SYSTEMS CAPITAL REMARKET
SKU: 11284461
Manufacturer part number: SG220-26-K9-NA-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Width17.3"
Depth7.91"
Height1.73"
Weight6.19 lbs
Switch TypeManaged
MAC address filteringYes
Switching capacity52 Gbit/s
Throughput38.69 Mpps
Number of VLANs256
Combo SFP ports quantity2
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP client
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Number of queues8
MIB supportY
Rate limitingYes
Number of multicast groups filtered256
Head-of-line (HOL) blockingYes
Features
Internal memory128 MB
LED indicatorsYes
Packaging content
Cables includedAC
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity26
Performance
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network
Multicast supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Security
Security algorithms802.1x RADIUS, SSL/TLS
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL2
Technical details
Product colorBlack
Flow control supportYes
Power
AC input voltage100 - 240 V
Other features
Quick start guideYes
MAC address table8192 entries
Protocols
Management protocolsSNMP v1, SNMP v2, SNMP v3
Memory
Flash memory16 MB
*
*
*
