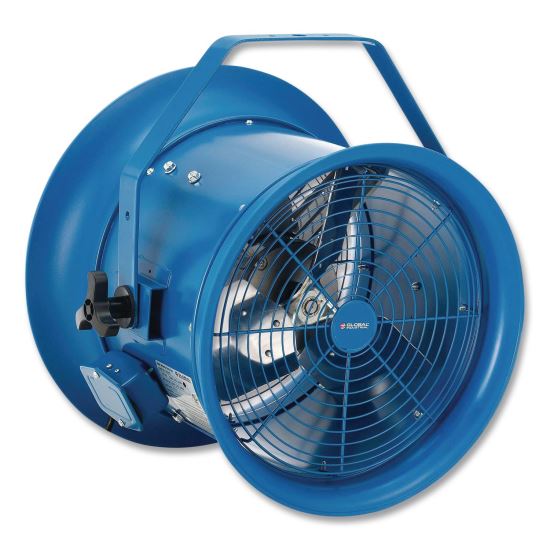

High Velocity Drum Fan with Yoke Mount, 14", Blue1

High Velocity Drum Fan with Yoke Mount, 14", Blue

Manufacturer: GLOBAL INDUSTRIAL
SKU: GBE293092
Manufacturer part number: 293092
GTIN: 0707022462518
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options. Fan Head Size: 14"; Fan Type: Industrial; Oscillates: No; Color(s): Blue.
Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options. Fan Head Size: 14"; Fan Type: Industrial; Oscillates: No; Color(s): Blue.
Products specifications
Attribute nameAttribute value
StyleIndustrial
Global Product TypeIndustrial Floor Fans
Pre-Consumer Recycled Content Percent0%
Post-Consumer Recycled Content Percent0%
Total Recycled Content Percent0%
Width21.19"
Depth15.43"
Material(s)Metal/Polyethylene
Color(s)Blue
Compliance StandardsUL Listed
Length14"
Diameter14"
Blade MaterialGalvanized Aluminum
Cord Length12 ft
Number of Blades3
Voltage115 V/208-240 V
Maximum Room Size3,000 to 4,500 sq ft
Fan Head Size14"
Fan TypeIndustrial
Blade ColorSilver
Guard ColorBlack
Guard MaterialSteel
Housing MaterialHigh-Impact Polyethylene
Air Flow (CFM)6,800 CFM
Housing ColorBlue
Noise Rating (dBA)77.6 dBA
AC Voltage115 to 120 V
Number of Speeds1
Amps4 A/2 A
Horsepower1/3 hp
Motor TypeTotally Enclosed Air Over
Height (Max)22.43"
Built-in lightNo
Fan Width14"
Product Biodegradability IndicatorN
Product Compostability IndicatorN
OscillatesNo
Housing FinishPolyethylene
Motor PhaseSingle
Motor Size1/3 hp
SwitchBuilt-In On/Off Rocker
Fan Speed (RPM)1,720 RPM
Light Kit IncludedNo
CFM/Watts400 W
Maximum Operating Speed (RPM)1,720 RPM
*
*
*
