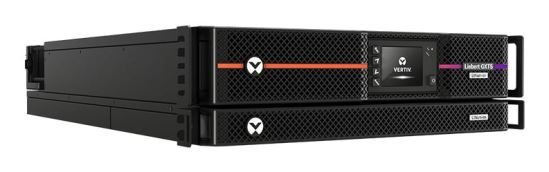

Vertiv Liebert GXT5LI-5000MVRT3UXLN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 2 AC outlet(s)1

Vertiv Liebert GXT5LI-5000MVRT3UXLN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 2 AC outlet(s)2

Vertiv Liebert GXT5LI-5000MVRT3UXLN uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 2 AC outlet(s)

Vertiv Liebert GXT5LI-5000MVRT3UXLN. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: NEMA L14-30R, Power plug: NEMA L14-30P, AC outlets quantity: 2 AC outlet(s). Battery technology: Lithium Iron Phosphate (LiFePO4), Typical backup time at full load: 12 min, Typical backup time at half load: 25 min. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 3U. Compliance certificates: REACH, RoHS, WEEE

Manufacturer: Vertiv

SKU: 6797106

Manufacturer part number: GXT5LI-5000MVRT3UXLN

GTIN: 0767041035100

Vertiv™ Liebert® GXT Lithium-Ion 5000VA, 120V/208V Online UPS with L14-30P Input, (2) NEMA L14-30R Outlets and Hardwired Output, Vertiv™ Liebert® IntelliSlot™ with RDU101, and Extended Runtime Capability

Lowest total cost of ownership over the lifetime of the UPS. The expected useful life of the Lithium-Ion batteries is up to 3 times that of VRLA batteries which translates into fewer battery replacements over the life of the UPS
Lithium-Ion battery technology delivers more runtime and faster recharge time, and offers better performance at higher temperatures and supports up to 10 times more discharge cycles compared to standard VRLA batteries
The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss
Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments
Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment

Overview
Specifications
Contact Us

Lowest total cost of ownership over the lifetime of the UPS. The expected useful life of the Lithium-Ion batteries is up to 3 times that of VRLA batteries which translates into fewer battery replacements over the life of the UPS
Lithium-Ion battery technology delivers more runtime and faster recharge time, and offers better performance at higher temperatures and supports up to 10 times more discharge cycles compared to standard VRLA batteries
The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss
Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments
Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment

Products specifications

Attribute name	Attribute value
Width	16.9"
Depth	35"
Height	5.24"
Weight	104.9 lbs
Response Time	0 ms
Battery Recharge Time	2 h
Input Frequency	40/70 Hz
Cable Length	118.1"
Control type	Buttons
UPS topology	Double-conversion (Online)
Serial interface	Yes
Compliance certificates	REACH, RoHS, WEEE
Features
Rack capacity	3U
LED indicators	Yes
Output power	5000 W
Noise level	58 dB
Input operation voltage (min)	120 V
Input operation voltage (max)	240 V
Waveform	Pure sine
Design
Form factor	Rackmount/Tower
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 118110.2"
Ports & interfaces
AC outlets quantity	2 AC outlet(s)
AC outlet types	NEMA L14-30R
Power plug	NEMA L14-30P
USB port	Yes
Technical details
Product color	Black
Power
Output power capacity	5 kVA
Packaging data
Package width	31.4"
Package depth	39.3"
Package height	20.9"
Package weight	176.4 lbs
Battery
Battery technology	Lithium Iron Phosphate (LiFePO4)
Typical backup time at full load	12 min
Typical backup time at half load	25 min
