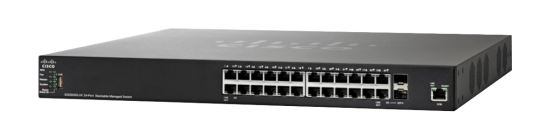

Cisco Small Business SG350X-24 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

Cisco Small Business SG350X-24. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 64000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting, Form factor: 1U
SKU: 6535603
Manufacturer part number: SG350X-24-K9-NA-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Cisco® 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 24 or 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit uplinks. The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco’s most cost-effective platforms with 10 Gigabit Ethernet and stacking.

Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business.
The Cisco® 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 24 or 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit uplinks. The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco’s most cost-effective platforms with 10 Gigabit Ethernet and stacking.

Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business.
Products specifications
Attribute nameAttribute value
Width17.3"
Depth10.1"
Height1.73"
Weight9.52 lbs
Switch TypeManaged
StackableYes
Heat dissipation83.39 BTU/h
Built-in processorYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Switching capacity128 Gbit/s
Power supply includedYes
Throughput95.23 Mpps
Rack mount kitYes
Number of VLANs4094
SFP+ module slots quantity2
Static routeYes
Combo SFP ports quantity2
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
DoS attack preventionYes
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Number of queues8
IP routingYes
Rate limitingYes
Number of static routes8000
IP-MAC-Port bindingYes
Number of multicast groups filtered4000
sFlowYes
Physical stacking (units)4
Queue scheduling algorithmsSP, Weighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP)Yes
Loop protectionYes
ARP inspectionYes
BPDU filtering/protectionYes
IPv4 & IPv6 featuresIPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6
AuthenticationGuest VLAN, Port-based authentication, Web-based authentication
Active link detectionYes
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules2000
Cable length detectionYes
TelnetYes
Authentication typeIEEE 802.1x, RADIUS
Number of IP interfaces256
Root protectionYes
Features
Internal memory512 MB
Number of fans2 fan(s)
LED indicatorsYes
Noise level52.9 dB
Mean time between failures (MTBF)385289 h
Packaging content
Cables includedAC, Serial
Design
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Form factor1U
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
USB 2.0 ports quantity1
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Performance
Console portRJ-45
Fiber optic connectorSFP+
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Jumbo frames supportYes
Jumbo frames9000
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Security
Security algorithms802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS
System event logYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorBlack
Flow control supportYes
Power
Power consumption (typical)32.5 W
AC input frequency47/63 Hz
AC input voltage100 - 240 V
Number of power supply units1
Other features
Quick start guideYes
Rack mountingYes
MAC address table64000 entries
Memory
Flash memory256 MB
Data transmission
Packet buffer memory12 MB
*
*
*
Products specifications
Attribute nameAttribute value
Width17.3"
Depth10.1"
Height1.73"
Weight9.52 lbs
Switch TypeManaged
StackableYes
Heat dissipation83.39 BTU/h
Built-in processorYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Switching capacity128 Gbit/s
Power supply includedYes
Throughput95.23 Mpps
Rack mount kitYes
Number of VLANs4094
SFP+ module slots quantity2
Static routeYes
Combo SFP ports quantity2
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
DoS attack preventionYes
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Number of queues8
IP routingYes
Rate limitingYes
Number of static routes8000
IP-MAC-Port bindingYes
Number of multicast groups filtered4000
sFlowYes
Physical stacking (units)4
Queue scheduling algorithmsSP, Weighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP)Yes
Loop protectionYes
ARP inspectionYes
BPDU filtering/protectionYes
IPv4 & IPv6 featuresIPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6
AuthenticationGuest VLAN, Port-based authentication, Web-based authentication
Active link detectionYes
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules2000
Cable length detectionYes
TelnetYes
Authentication typeIEEE 802.1x, RADIUS
Number of IP interfaces256
Root protectionYes
Features
Internal memory512 MB
Number of fans2 fan(s)
LED indicatorsYes
Noise level52.9 dB
Mean time between failures (MTBF)385289 h
Packaging content
Cables includedAC, Serial
Design
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Form factor1U
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
USB 2.0 ports quantity1
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
Performance
Console portRJ-45
Fiber optic connectorSFP+
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Jumbo frames supportYes
Jumbo frames9000
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresPrivate VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Security
Security algorithms802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS
System event logYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorBlack
Flow control supportYes
Power
Power consumption (typical)32.5 W
AC input frequency47/63 Hz
AC input voltage100 - 240 V
Number of power supply units1
Other features
Quick start guideYes
Rack mountingYes
MAC address table64000 entries
Memory
Flash memory256 MB
Data transmission
Packet buffer memory12 MB
