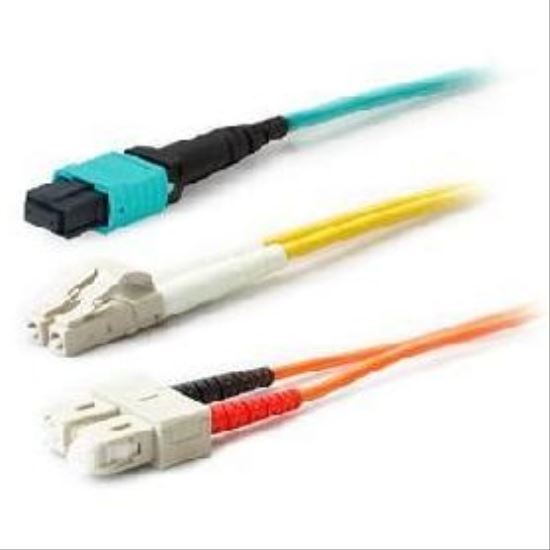

This is a 13.0m (42.7ft) LC (male) to LC (male) yellow OS2 duplex riser-rated patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This riser (OFNR) cable is best suited for use in interior fiber-optic applications. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive.
Products specifications
| Attribute name | Attribute value |
|---|
| Cable Length | 511.8" |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Core diameter | 9 µm |
| Wavelengths supported | 1310,1550 nm |
| Cladding diameter | 125 µm |
| Connector 1 | LC |
| Connector 2 | LC |
| Plug and Play | Y |
| Fiber optic type | OS2 |
| Quantity per pack | 1 pc(s) |
| Certification | ISO, TAA, RoHS, CE, WEEE, NEBS, BBB |
| Product color | Yellow |
