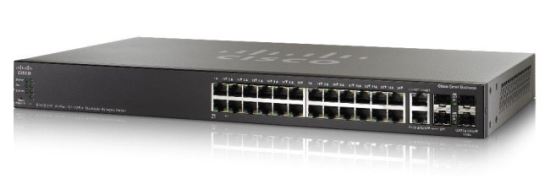

Cisco SG500X-24 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black1

Cisco SG500X-24 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

Cisco SG500X-24. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16384 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Manufacturers: Cisco , CISCO SYSTEMS CAPITAL REMARKET
SKU: 11284746
Manufacturer part number: SG500X-24-K9-NA-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Width17.3"
Depth10.1"
Height1.73"
Weight7.61 lbs
Switch TypeManaged
StackableYes
Heat dissipation114.7 BTU/h
Built-in processorYes
MAC address filteringYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Switching capacity128 Gbit/s
Power supply includedYes
Rack mount kitYes
Number of VLANs4096
SFP+ module slots quantity2
Static routeYes
Combo SFP ports quantity2
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
DoS attack preventionYes
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Included power plug typesAU
Number of queues8
IP routingYes
Rate limitingYes
Number of static routes2048
Static port securityYes
MAC address auto-learning supportedYes
IP-MAC-Port bindingYes
Number of multicast groups filtered1024
Forwarding rate95.24 Mpps
Queue scheduling algorithmsWeighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP)Yes
Virtual Router Redundancy Protocol (VRRP)Yes
Loop protectionYes
ARP inspectionYes
BPDU filtering/protectionYes
AuthenticationWeb-based authentication
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules3072
Cable length detectionYes
TelnetYes
Authentication typeIEEE 802.1x
Number of IP interfaces256
Root protectionYes
Features
Internal memory256 MB
Number of fans1 fan(s)
Plug and PlayYes
LED indicatorsYes
Noise level40.2 dB
Mean time between failures (MTBF)246188.2 h
Packaging content
Cables includedAC, Serial
Design
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Form factor1U
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Fiber optic connectorSFP+
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Cable types supportedCat5
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames supportYes
Jumbo frames9216
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresMulticast VLAN, Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN
Security
Security algorithms802.1x RADIUS, HTTPS, SNMPv3, SSH, SSL/TLS
System event logYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorBlack
Flow control supportYes
Power
AC input frequency47/63 Hz
AC input voltage100 - 240 V
Power consumption (max)36.5 W
Other features
Quick start guideYes
Rack mountingYes
Compatible operating systemsWindows, Linux, Mac OS X
MAC address table16384 entries
Memory
Flash memory32 MB
Data transmission
Packet buffer memory12 MB
*
*
*
Products specifications
Attribute nameAttribute value
Width17.3"
Depth10.1"
Height1.73"
Weight7.61 lbs
Switch TypeManaged
StackableYes
Heat dissipation114.7 BTU/h
Built-in processorYes
MAC address filteringYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Switching capacity128 Gbit/s
Power supply includedYes
Rack mount kitYes
Number of VLANs4096
SFP+ module slots quantity2
Static routeYes
Combo SFP ports quantity2
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP server, DHCP snooping, DHCP relay, DHCP client
DoS attack preventionYes
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Included power plug typesAU
Number of queues8
IP routingYes
Rate limitingYes
Number of static routes2048
Static port securityYes
MAC address auto-learning supportedYes
IP-MAC-Port bindingYes
Number of multicast groups filtered1024
Forwarding rate95.24 Mpps
Queue scheduling algorithmsWeighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP)Yes
Virtual Router Redundancy Protocol (VRRP)Yes
Loop protectionYes
ARP inspectionYes
BPDU filtering/protectionYes
AuthenticationWeb-based authentication
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules3072
Cable length detectionYes
TelnetYes
Authentication typeIEEE 802.1x
Number of IP interfaces256
Root protectionYes
Features
Internal memory256 MB
Number of fans1 fan(s)
Plug and PlayYes
LED indicatorsYes
Noise level40.2 dB
Mean time between failures (MTBF)246188.2 h
Packaging content
Cables includedAC, Serial
Design
CertificationUL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Form factor1U
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Fiber optic connectorSFP+
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Cable types supportedCat5
Multicast supportYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Jumbo frames supportYes
Jumbo frames9216
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresMulticast VLAN, Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN
Security
Security algorithms802.1x RADIUS, HTTPS, SNMPv3, SSH, SSL/TLS
System event logYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorBlack
Flow control supportYes
Power
AC input frequency47/63 Hz
AC input voltage100 - 240 V
Power consumption (max)36.5 W
Other features
Quick start guideYes
Rack mountingYes
Compatible operating systemsWindows, Linux, Mac OS X
MAC address table16384 entries
Memory
Flash memory32 MB
Data transmission
Packet buffer memory12 MB
